Balancing Systems
MPM have been producing balancing systems in various forms for more than 40 years.
As well as systems for grinding machines, they produce a wide range of balance solutions for the industrial sector.

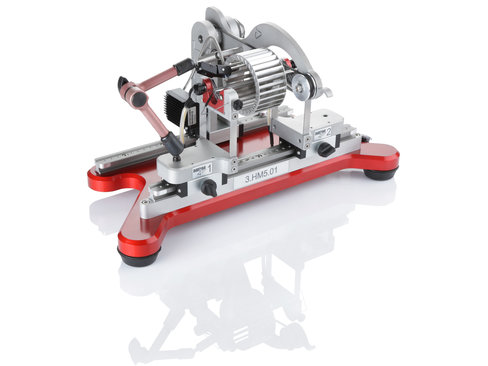

The MPM HM5 Horizontal Machine is a standard balancing station for small rotors and shafts, up to 500gm.
- Menu driven, simple touch screen operation – no training required.
- Single or double plane balancing mode.
- Measuring accuracy – < 0.1gm.
- Speed controlled DC drive.
- Totally maintenance free.
- Can hold up to 240 data sets of component information.
- Protection against unauthorised use.
- Display and control by the MPM – BM240M electronic unit.
HM5 – The ideal solution for all your small balancing applications.

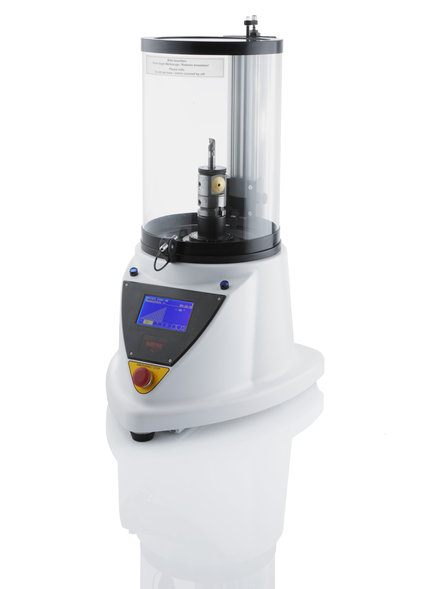

The MPM BMT200
The Ultimate Balancing Station for medium size shafts, rotors, tools etc.
- Exact, Efficient and with an extremely simple operation.
- Highly accurate laser positioning.
- User friendly touch screen display.
- Simple menu driven operation.
- 1 or 2 plane options.
- Automatic tool clamping.
- Automatic radial positioning.
- Can hold up to 240 data sets of component information.
- Protection against unauthorised use.
- Self calibration.
- Display and control by the MPM – BM240M electronic unit.
BMT200 – The ideal solution for all your balancing applications – easy operation at a favourable price.
Hundreds of units in use throughout Europe and further afield

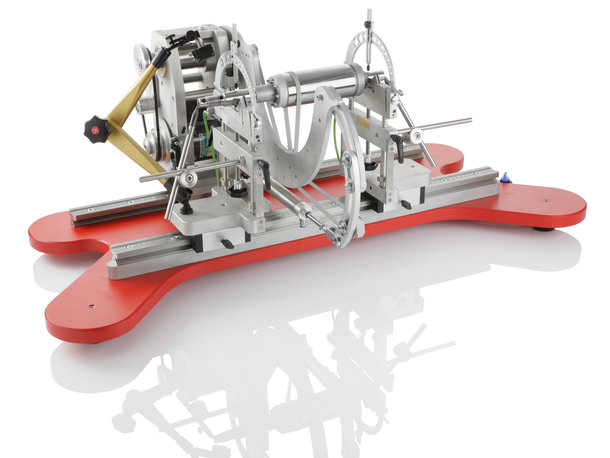

The MPM HM50 Horizontal Machine is a standard balancing concept for small and medium size rotors and shafts, up to 10kg.
Menu driven, simple touch screen operation – no training required.
Single or double plane balancing mode.
Balancing accuracy – < 1gm.
Component Ø – 10 to 350mm.
Component lengths – up to 350mm (as an option – 800mm).
Laser angular measuring device.
Display and control by the MPM – BM240M electronic unit.
HM50 – Proven Balancing Technology

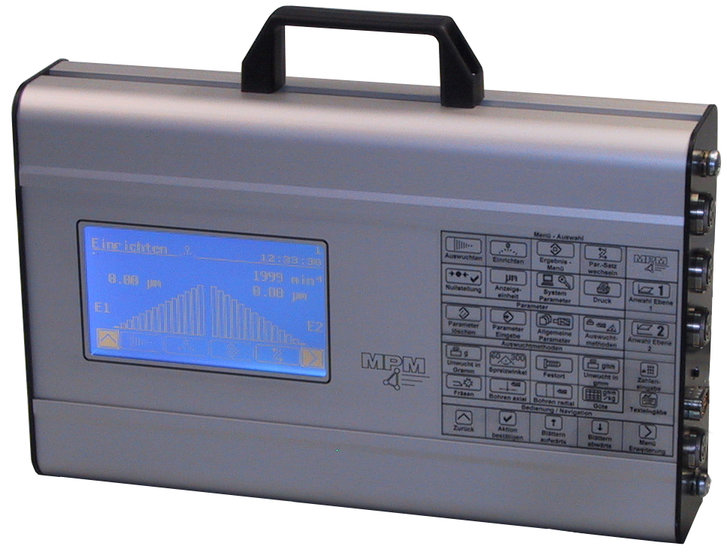

BM240M electronic unit – for all balancing stations and machines.
Easy menu driven operation.
Measuring records can be sent to a serial printer or PC.

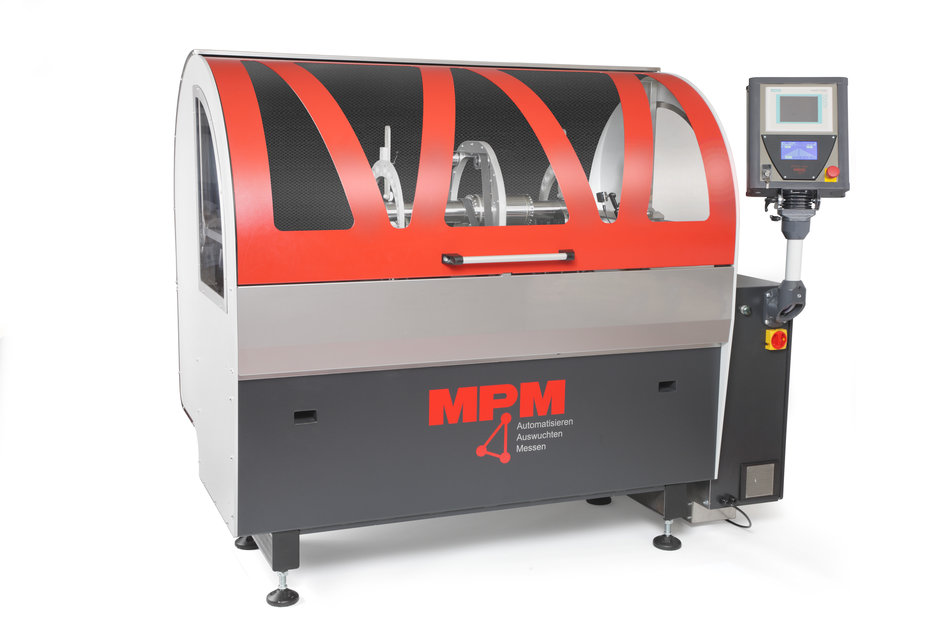

The MPM HM1500 machine is a 2 plane dynamic balancing machine for components up to 150Kg.
Component Diameter – up to 300 mm.
Component length – up to 1300 mm.
Easily adjustable belt drive.
Complete with it’s own control and display unit.
